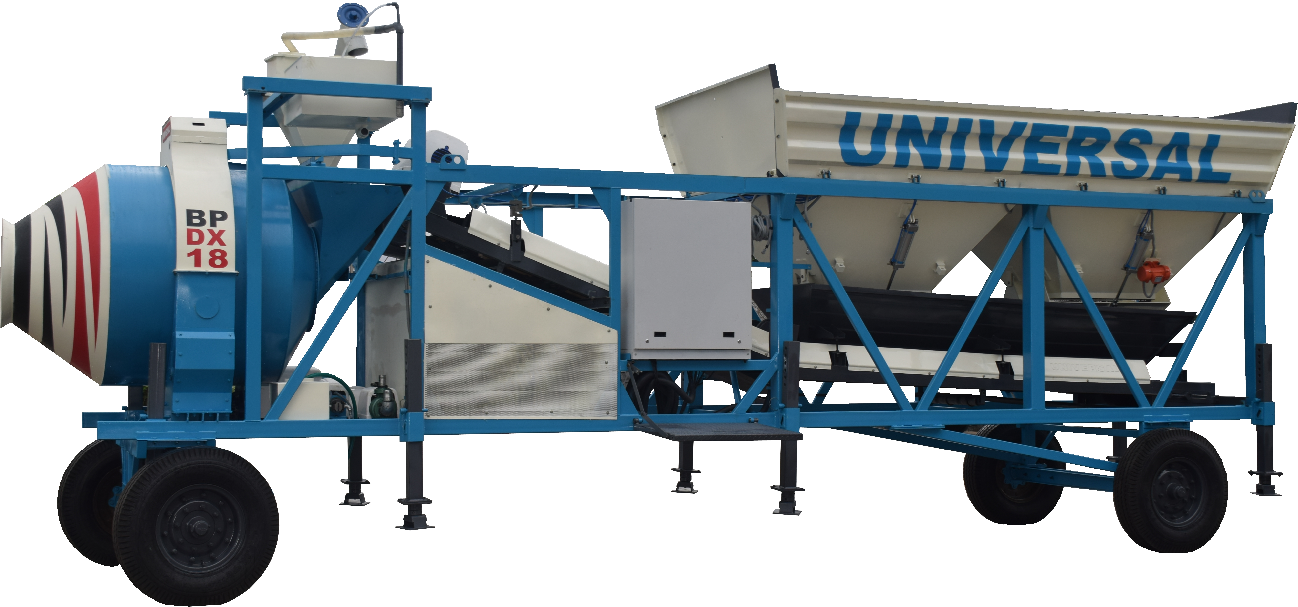

Mobile RM-DX Series

This is one of the most compact batching units that Universal offers, suited for smaller concreting operations. The system features automatic operation with digital control for water and admixture proportioning. Two capacity variants (18 and 25 Cu.Mt./Hr) are offered with specifications tailored accordingly.

Specifications

Batch Capacity
500 Lts. and 750 Lts.
Prime Mover
10 H.P. and 15 H.P.
Storage/Feeding System
Cross Bin
Storage Bins
4 Nos.
Bin Capacity
3.5 Cu.Mt. (each) and 4 Cu.Mt. (each)
Gate Control
Pneumatic Gates
Weighing Method
Suspended Belt Conveyor System
Aggregate Discharge
By Aggregate Weighing Mixer
Water System
Automatic Digitally Controlled
Admixture System
Automatic Digitally Controlled
Concrete Discharge Height
1.6 Mt.
Cement Storage/Feeding
0.8 Cu.Mt. Screw Conveyor Type
Screw Conveyor H.P.
3 H.P. and 7.5 H.P.
Total Installed H.P.
35.5 H.P. and 40.5 H.P.
Generator Capacity
50 KVA and 63 KVA
