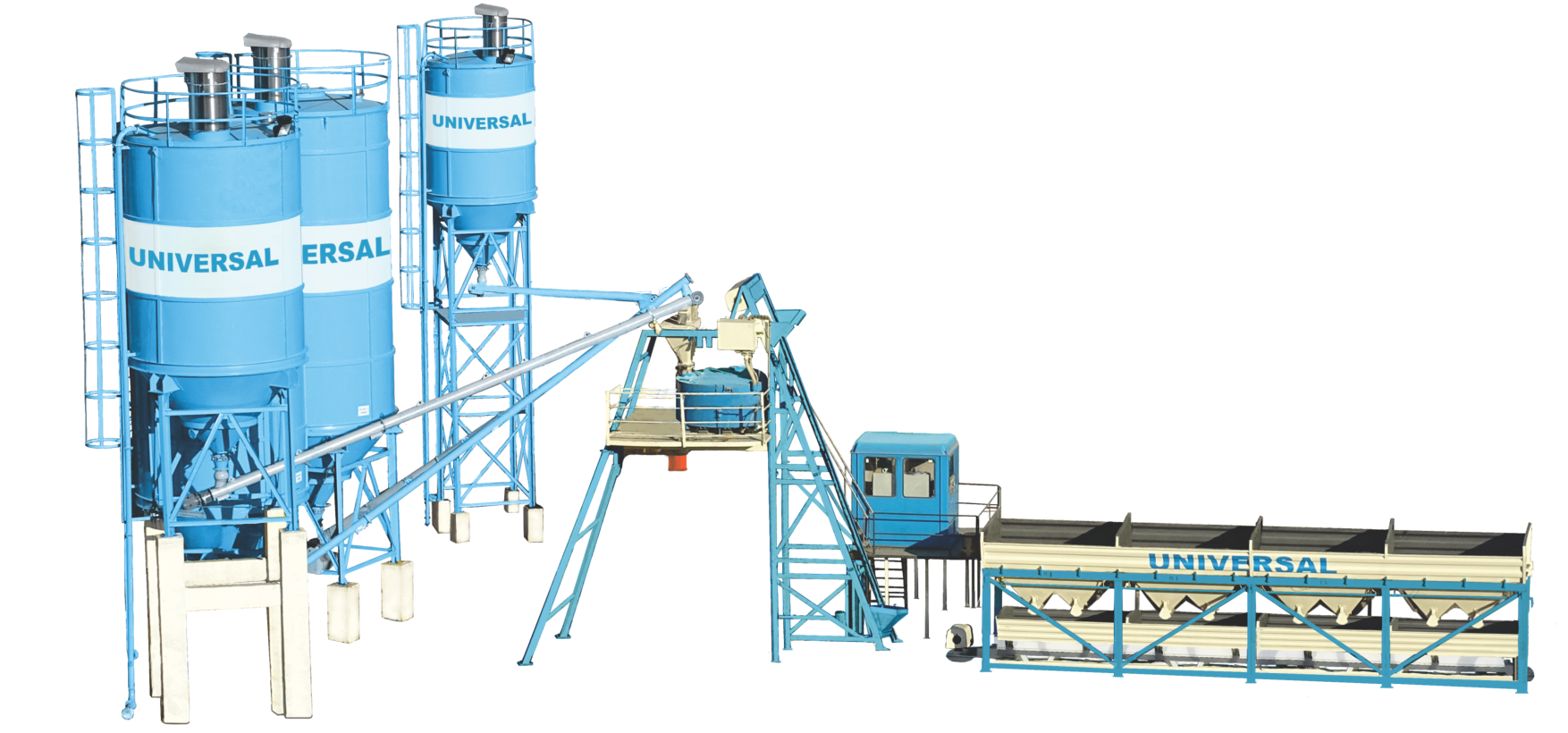

This unit is suitable for a medium scale requirement and is available for 22, 30, 45, 60 and 120 Cu.Mt./Hr capacities. Key advantages include a foundation-free design, minimal power needs, and automated controls featuring PLC and SCADA systems.
| Specification | 60 Cu.Mt./Hr | 90 Cu.Mt./Hr | 120 Cu.Mt./Hr |
|---|---|---|---|
| Rated Output | 60 CuM/Hr. | 90 CuM/Hr. | 120 CuM/Hr. |
| Vibrated Batch Capacity | 1000 liters | 2000 Liters | 3000 Liters |
| Aggregate Storage Capacity | 40 CuM | 60 CuM | 80 CuM (Expandable) |
| Skip/Belt Motor | 15 Hp | 20 H.P. | 25 Hp |
| Aggregate Bin Capacity | 10 x 4 CuM Nos. of Bin | 15 x 4 CuM Nos. of Bin | 20 x 4 CuM Nos. of Bin |
| Storage Type | Inline Type | Inline Type | Inline Type |
| Weighing System | Load Cell Based Digital Batch Controller | Load Cell Based Digital Batch Controller | Load Cell Based Digital Batch Controller |
| Cycle Control | Fully Automatic PLC/SCADA | Fully Automatic PLC/SCADA | Fully Automatic PLC/SCADA |
| Power Required | 110 Hp | 199.5 Hp | 276 Hp |
| Generator Capacity | 160 KVA | 300 KVA | 380 KVA |
