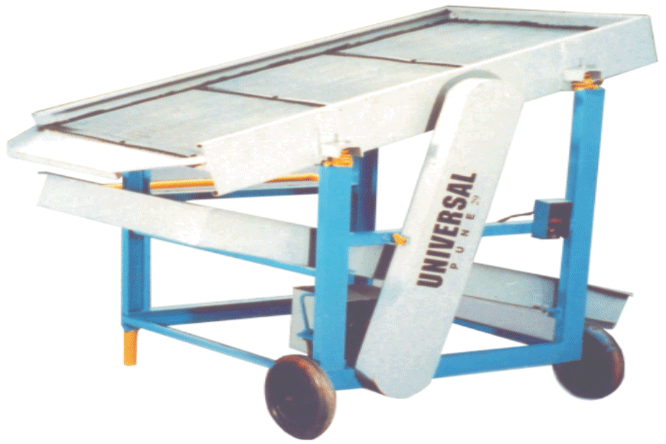

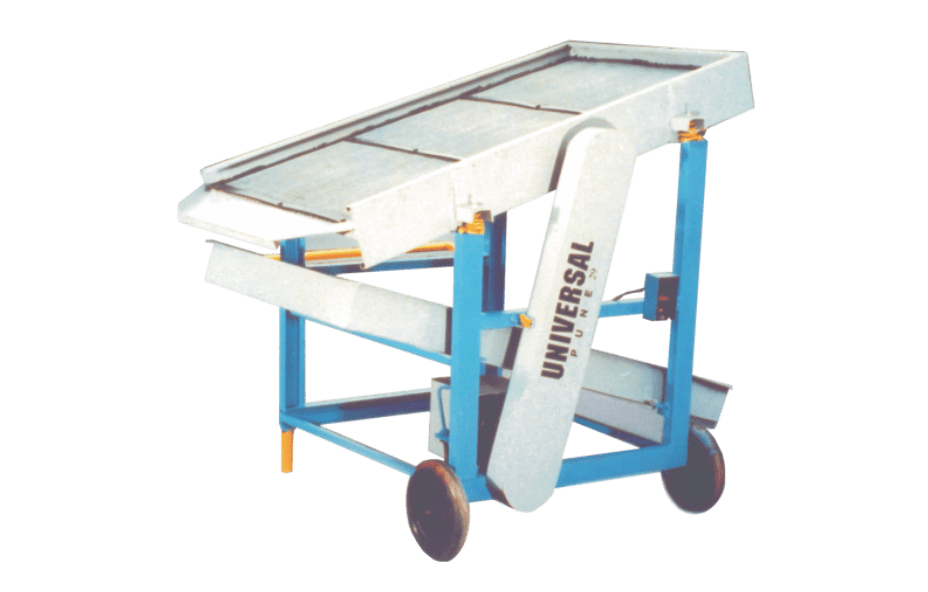

This machine employs the vibration principle for better screening of the sand. Wet sand (moisture content below 5%) can be effectively screened through this machine. The machine is capable of screening high volumes of sand and hence employed for medium and large scale operations. Specifications for the machine are as mentioned below.
Specification Details
| Capacity (Dry Sand and Sand having moisture below 5%) | 6 Cu.Mt./Hr. |
| Power | 1 H.P. Single Phase Electrical Motor. |
| Supply | 230 V, 50 Hz. |
| Loading | Manual |
| Vibrations | Eccentric Vibrator (1500 X 900) mm. |
| Screen Mesh | Size (1500 X 900) mm, 5mm X 5mm GI Mesh. |
| Dimensions (L X W X H) | (1750 X 1250 X 1500) mm. |
| Mobility | Two M.S. Wheels. |
| Weight | 90 Kgs. |
