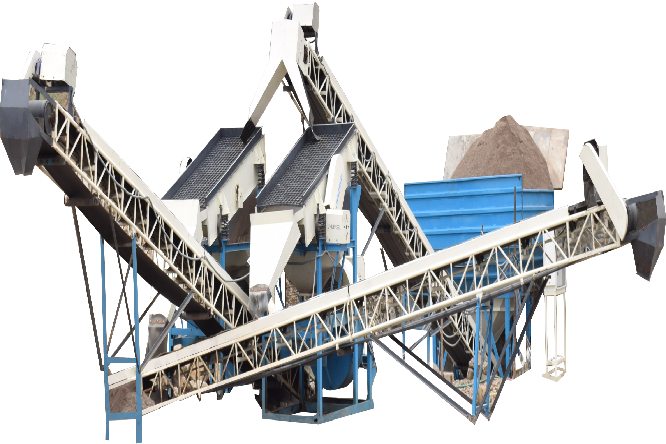

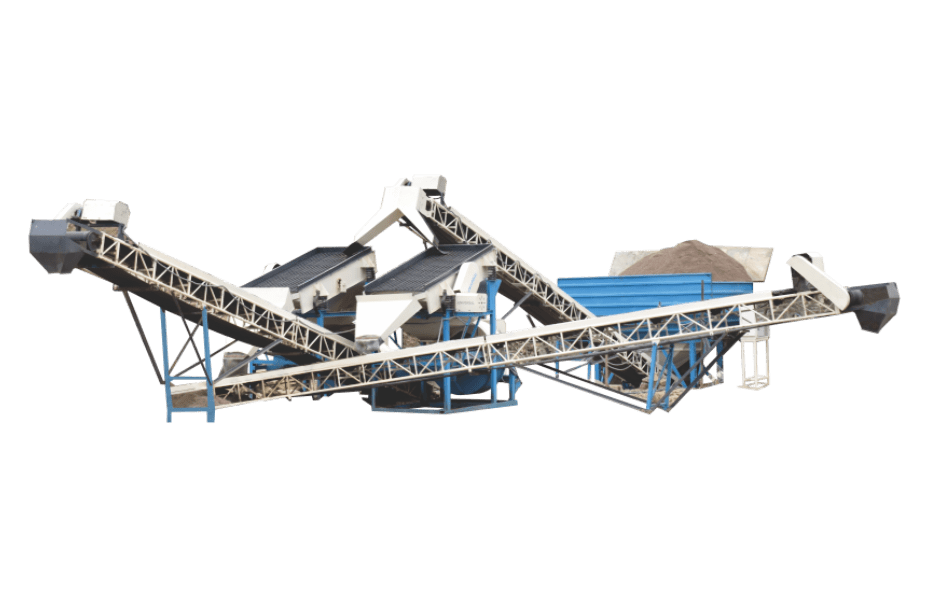

Essentially an extension of the USSWM-6, this plant employs similar technology for consecutive screening and washing operations. It is engineered for high-volume processing and proves ideal for major construction undertakings, available in two configurations — USWP-15 and USWP-30. It is equipped with 3 belt conveyors for loading, washed sand and oversized sand.
| Specification | USWP-15 | USWP-30 |
|---|---|---|
| Input Capacity | 4 Cu.Mt./Hr. | 6 Cu.Mt./Hr. |
| Power | 23.5 H.P. | 36 H.P. |
| Vibration | Eccentric Vibrator Shaft | Eccentric Vibrator Shaft |
| Screen Dimension | 10 X 4 Ft. | 10 X 4 Ft. |
| Screen Mesh Size | 4.75 mm Maximum Particle Size | 4.75 mm Maximum Particle Size |
| Storage Hopper | 6 Cu.Mt. | 8 Cu.Mt. |
| Conveyors | 3 Belt Conveyor | 3 Belt Conveyor |
3 Belt Conveyor functions: 1st Loading, 2nd Washed Sand, 3rd Oversized Sand.
