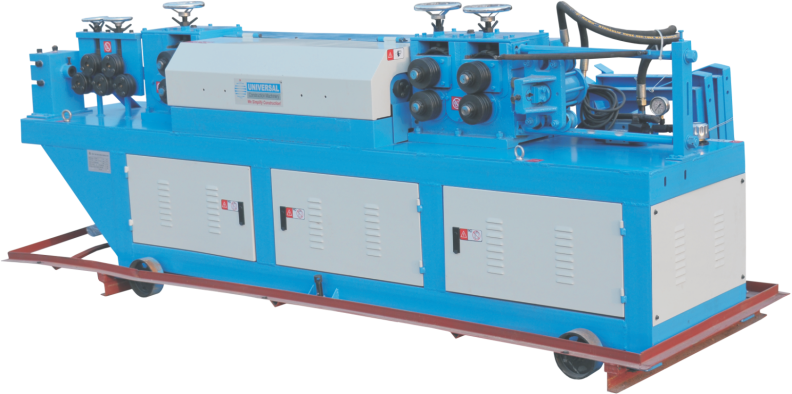

Bar Straightening and Cutting Machines

This unit is mainly employed for steel bars inserted in columns and has been recently introduced by Universal. Steel Bars up to 14 mm diameter can be processed through this machine. Robust in construction and low maintenance are salient features of this unit.

Specification Details

Straightening Diameter
4-14 mm.
Wire Traction Speed
50-65 Mt./Min.
Length of Wire Set Ruler
800-1100 mm (Increasable).
Length Error of Wire Cutting
+5 mm.
Wire Straightening Degree
+2 mm/Mt.
Traction
4.0 K.W.
Straightening
7.5 K.W.
Cutting
4.0 K.W.
Host Dimension (L X W X H)
3150 X 650 X 1200 mm.
Gross Machine Weight
1380 Kgs.
