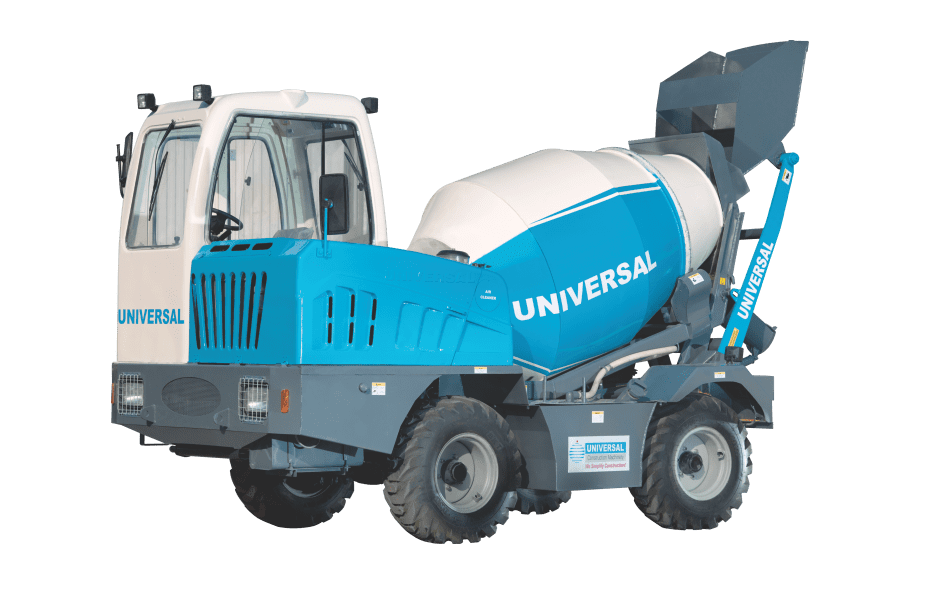

This is a latest and revolutionary offering from Universal, more suited for small to medium size concrete requirements. These machines require only one operator to drive, load, input, doze and mix the concrete mixture while moving across sites. These are designed to withstand extreme weather and on-site conditions and have four-wheel steering for better maneuverability.
Specification Details
Variants | SLM-2 / SLM-4. |
Drum Capacity | 3.2 Cu.Mt. / 5.4 Cu.Mt. |
Engine | 48 BHP @ 2300rpm, BS III. / 108 BHP @ 2500rpm, BS III. |
Transmission | 4 Wheel Drive, 4 Speed Automatic Hydrostatic Transmission. Electro-hydraulic Control for 2 speeds. Vehicle Max. Speed up to 20 KMPH (Forward and Reverse). / 4 Wheel Drive, 4 Speed Automatic Hydrostatic Transmission. Electro-hydraulic Control for 2 speeds. Vehicle Max. Speed up to 30 KMPH (Forward and Reverse). |
Axles | Heavy Duty Fully Floating Type Axles. |
Steering | Fully Hydraulic Powered Steering unit. 3 Type Steering System. |
Wheels | 12.50 X 80.18 12 PR Tubeless – MT45 Pattern. / 405/20-20 14 PR Tubeless – MT54 Pattern. |
Self Loading System | Hydraulic Cylinder Controlled Loading Bucket (320 Lt. Capacity). Double Joystick Controls for loading and unloading bucket. / Hydraulic Cylinder Controlled Loading Bucket (600 Lt. Capacity). Double Joystick Controls for loading and unloading bucket. |
Water System | Water flow meter system with 450 LPM water pump driven by hydraulic motor. Ball valves for selection of suction points and discharge points. |
Electrical System | Battery: 12 V, 135 Amp-Hr. / Battery: 12 V, 150 Amp-Hr. |
Brakes | Totally enclosed with oil bath Disc Brakes; Parking Brakes Mechanical, hand operation. |
Driver Seat | Swivel able operator post up to 270 degrees. |
Dimensions (L X W X H) | 6360 X 2300 X 2800mm. / 7140 X 2500 X 4140mm. |
Weight | Net Vehicle Weight: 5000 Kgs. Gross Weight: 10,000 Kgs. / Net Vehicle Weight: 7000 Kgs. Gross Weight: 14,000 Kgs. |
