Concrete Pump

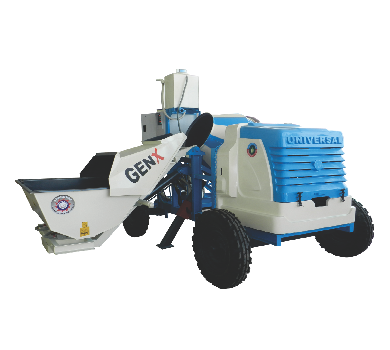

Concrete Pump is one of the latest offering from Universal as a part of their Concreting Solutions. Two variants are available in this category – HBT 40 RS and HBT 60 RS. These powerful pumps can do the job effortlessly of pumping concrete over small or large distances. Reliability and efficiency in operation are key features of these machines. Specifications for HBT 40 RS and HBT 60 RS respectively are mentioned below.

Specification Details

Max. Theo Output
(48/30 Cu.Mt./Hr.) and (75/45 Cu.Mt./Hr.).
Max. Theo Concrete Output Pressure
(50/100 Bar) and (125/73 Bar).
Distributing Valve
S Valve.
Cylinder Diameter and Stroke
(180 X 1200 mm) and (200 X 1650 mm).
Hopper Capacity
500 Lt. and 600 Lt.
Feeding Height
1335 mm and 1400mm.
Power
48.6 KW and 81 KW.
Pumping System Pressure
320 Bar and 350 Bar.
Distributing Pressure
190 Bar and 250 Bar.
Mixing System Pressure
140 Bar.
Dimensions (L X W X H)
(5060 X 2020 X 2035 mm) and (6400 X 2180 X 2540 mm).
Weight
3500 Kgs. and 6500 Kgs.
