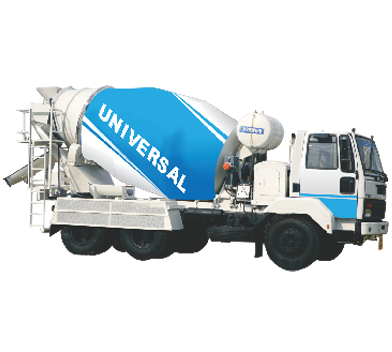

Transit Mixer is one of the recent product made available by Universal. This mobile unit comes loaded with many varied and excellent features. This mixer has been designed keeping in mind the on-site conditions for Indian sites. It has an extremely robust construction that prepares it for rough handling. Its unique design with a twin roller system employed within provides it a larger volume. It is also equipped with a heavy duty chute for dispensing; and has easy to operate controls. Specifications of Transit Mixer are as mentioned below.
Specification Details
| Shell Thickness | 5-8 mm. |
| Geometric Volume | 12.7 Cu. Mt. |
| Nominal Capacity | 6 Cu.Mt. |
| Water Overflow Level Volume | 7.3 Cu.Mt. |
| Filling Ratio | 47%. |
| Power | 70 H.P. Diesel Engine. |
| Drum Speed | 0-14 rpm. |
| Rotation | Clockwise / Anticlockwise. |
| Dimensions (L X W X H) | 6377 X 2450 X 2717mm. |
| Weight | 3750 Kgs. |
| Hydraulic System for the mixer | |
| Pump / Motor | Rexroth / Danfoss / Eaton. |
| Reducer | ZF / Danfoss. |
| Water Pump | 320 lpm / 3.5 Bar. |
| Water Tank Capacity | 470 Lt. |
