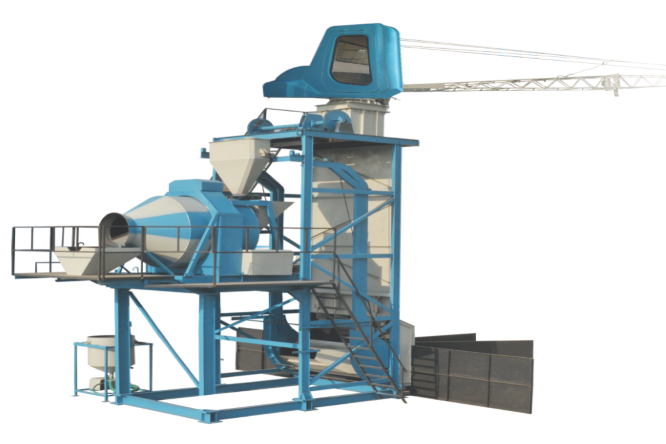

The boom scraper type feeding system employed in this series is a unique feature. Water and admixture dozing system enables the user to dispense a preset quantity of both during operation. These units are offered as RM 20, RM 30 and PAN 30. The specifications mentioned below are for RM 20, RM 30 and PAN 30 respectively.
Specification Details
| Batching Plant Capacity | 20 Cu.Mt. and 30 Cu.Mt. and 30 Cu.Mt. |
| Skip Bucket Capacity | 1050 Kgs. and 1575 Kgs. and 1050 Kgs. |
| Feeding System Type | Boom Scraper Type. |
| Load Cell Capacity | (1500 Kgs. x 2 Nos.) and (1500 Kgs. x 2 Nos.) and (1500 Kgs. x 4 Nos.). |
| Water Tank Capacity | 250 Lt. and 250 Lt. and 150 Lt. |
| Automation | Full Auto or Semi Auto. |
| Hopper Capacity of Cement Feeding Screw Conveyor | 1500 Kgs. |
| Main Motor | 10 H.P. and 15 H.P. and 30 H.P. |
| Skip Motor | 10 H.P. Brake Motor and 12.5 H.P. Brake Motor and 10 H.P. Brake Motor. |
| Water and Admixture Dozing System | Weight Based. |
| Boom Scraper Winch Motor | 10 H.P. |
| Compressor Motor | 5 H.P. |
| Total Power | 50.5 H.P. and 58 H.P. and 63 H.P. |
| Suggested Generator Capacity | 82 KVA and 82 KVA and 100 KVA. |
